1. Folasaga
This user manual provides comprehensive instructions for the safe and efficient operation, assembly, and maintenance of your Cecotec Bongo Serie Z Electric Scooter. This model features a maximum power of 1300W (800W nominal) and 48V, enabling it to climb slopes up to 15%. The 12600 mAh battery provides a maximum range of 60 km. It is equipped with SX2 suspension technology, rear-wheel drive, and 10.5-inch Off-Road wheels, designed for diverse terrains. Safety features include a triple braking system with high-precision disc brakes and e-ABS with regenerative braking. The integrated LED touch screen displays essential information such as mileage, speed, remaining battery, temperature, and voltage. The scooter boasts an IPX4 water protection rating and a durable aluminum alloy frame. It complies with all new Spanish traffic regulations.
Image 1.1: Cecotec Bongo Serie Z Electric Scooter, front view.
2. Fa'amatalaga Saogalemu
Before operating the Cecotec Bongo Serie Z Electric Scooter, carefully read and understand all safety instructions. Failure to follow these instructions may result in serious injury or damage to the product.
- Fai i taimi uma se pulou ma mea e puipuia ai (tuiuli, tulilima) pe a tietie.
- Adhere to local traffic laws and regulations, including speed limits. This scooter complies with new Spanish traffic regulations.
- Do not ride in heavy rain, snow, or icy conditions. The scooter has an IPX4 water protection rating, meaning it is resistant to splashing water from any direction, but it is not waterproof.
- Avoid riding on uneven surfaces, steep slopes exceeding 15%, or slippery roads.
- Ensure both hands are on the handlebars at all times during operation.
- Tausia se mamao saogalemu mai isi taʻavale, tagata savali, ma faʻalavelave.
- Regularly check the brakes, tires, and all components for proper function before each ride.
- Do not allow children or individuals unfamiliar with electric scooters to operate the device.
- Do not carry passengers or heavy loads that exceed the scooter's weight limit.
- Ia nofouta i mea o siomia ai oe ma aloese mai mea faalavefau a o e tietie uila.
3. Mea i totonu o le afifi
Ia mautinoa o loʻo iai mea uma ma o loʻo iai i se tulaga lelei pe a uma ona tatala le afifi:
- 1 x Cecotec Bongo Serie Z Electric Scooter
- 1 x Totogi
- 1 x Tool bag
- 1 x Tusi Fa'aoga
If any items are missing or damaged, contact Cecotec customer support immediately.
4. Fonotaga
The Cecotec Bongo Serie Z Electric Scooter requires minimal assembly. Follow these steps to prepare your scooter for use:
- Aveese ma le fa'aeteete le scooter ma vaega uma mai le afifiina.
- Lift the handlebar stem into the upright position.
- Connect the main cable from the handlebar to the cable extending from the stem. Ensure the connectors are securely fastened.
- Insert the handlebar into the stem and align the screw holes.
- Use the provided screws and Allen wrench from the tool bag to secure the handlebar firmly in place.
- Attach any additional accessories, such as the front light, using the provided hardware.
For a visual guide on the assembly process, please refer to the video below:
Video 4.1: This video demonstrates the unboxing and assembly steps for an electric scooter, including connecting cables and securing the handlebars.
Ata 4.2: Itu view of the Cecotec Bongo Serie Z Electric Scooter, highlighting its structure.
5. Galuega
Familiarize yourself with the controls and functions before your first ride.
5.1 Fa'aola i luga/Pepe
To power on the scooter, press and hold the power button on the control panel. The LED display will illuminate. To power off, press and hold the power button again until the display turns off.
Video 5.1: This video demonstrates the process of turning on an electric scooter's display and activating its functions.
5.2 LED Touch Screen Display
The integrated LED touch screen provides real-time information:
- Saosaoa: Fa'aali le saoasaoa o le tietiega o lo'o iai nei.
- Tulaga ma'a: Fa'ailoa mai o lo'o totoe le tau o le maa.
- maila: Shows distance traveled.
- Tempera: Displays motor temperature.
- Voltage: Shows current battery voltage.
- Tiʻetiʻe auala: Allows selection between ECO, D (Drive), and S (Sport) modes for different performance levels.
Image 5.2: Close-up of the LED display on the Cecotec Bongo Serie Z Electric Scooter, showing speed, battery, and mode indicators.
5.3 Faiga Ti'eti'e
The scooter offers multiple riding modes to suit different preferences and conditions:
- Faʻasao ECO: Provides maximum energy efficiency and extended range, ideal for casual cruising.
- D (Drive) Mode: A balanced mode offering a good mix of speed and battery life for everyday commuting.
- S (Sport) Mode: Delivers maximum power and speed, suitable for experienced riders and challenging terrains.
5.4 Faiga Fa'amau
The Cecotec Bongo Serie Z is equipped with a triple braking system for enhanced safety:
- High-Precision Disc Brakes: Located on both wheels for strong stopping power.
- e-ABS: Electronic Anti-lock Braking System prevents wheel lock-up during sudden braking.
- Toe fa'afouina taofi: Recovers energy during braking to extend battery life.
Image 5.3: Rear wheel of the Cecotec Bongo Serie Z Electric Scooter, showing the disc brake mechanism.
5.5 Lights and Indicators
The scooter features front and rear lights for visibility, and integrated turn signals for safe maneuvering.
Video 5.4: This video showcases various features of Cecotec Bongo electric scooters, including riding modes, suspension, and braking systems.
6. Totogiina
To ensure optimal performance and battery longevity, follow these charging guidelines:
- Su'e le uafu e molia ai i luga o le scooter.
- Ia mautinoa ua tape le eletise o le scooter a'o le'i fa'apipi'iina le charger.
- Connect the charger to the scooter's charging port, then plug the charger into a standard power outlet.
- O le moli fa'ailoga o le uta e masani ona fa'aalia le mumu i le taimi o le fa'atumuina ma liliu lanu meamata pe'a uma.
- Aua le soona fa'atumuina le maa. Motusi le masini fa'atumu pe a tumu le maa.
- Only use the original Cecotec charger provided with your scooter.
Image 6.1: Graphic indicating the 60km range of the Cecotec Bongo Serie Z Electric Scooter.
7. Tausiga
Regular maintenance is crucial for the longevity and safe operation of your scooter.
7.1 Fa'amamāina
Fa'amamā le scooter i taimi uma i le fa'aaogaina o le adamp cloth. Do not use high-pressure water jets or corrosive cleaning agents. The IPX4 rating protects against splashes, but avoid submerging any part of the scooter.
7.2 Tausiga o Pa'u Ta'avale
The 10.5-inch Off-Road wheels require proper inflation. Check tire pressure regularly and inflate to the recommended PSI (refer to the tire sidewall for specific values). Inspect tires for wear, punctures, or damage.

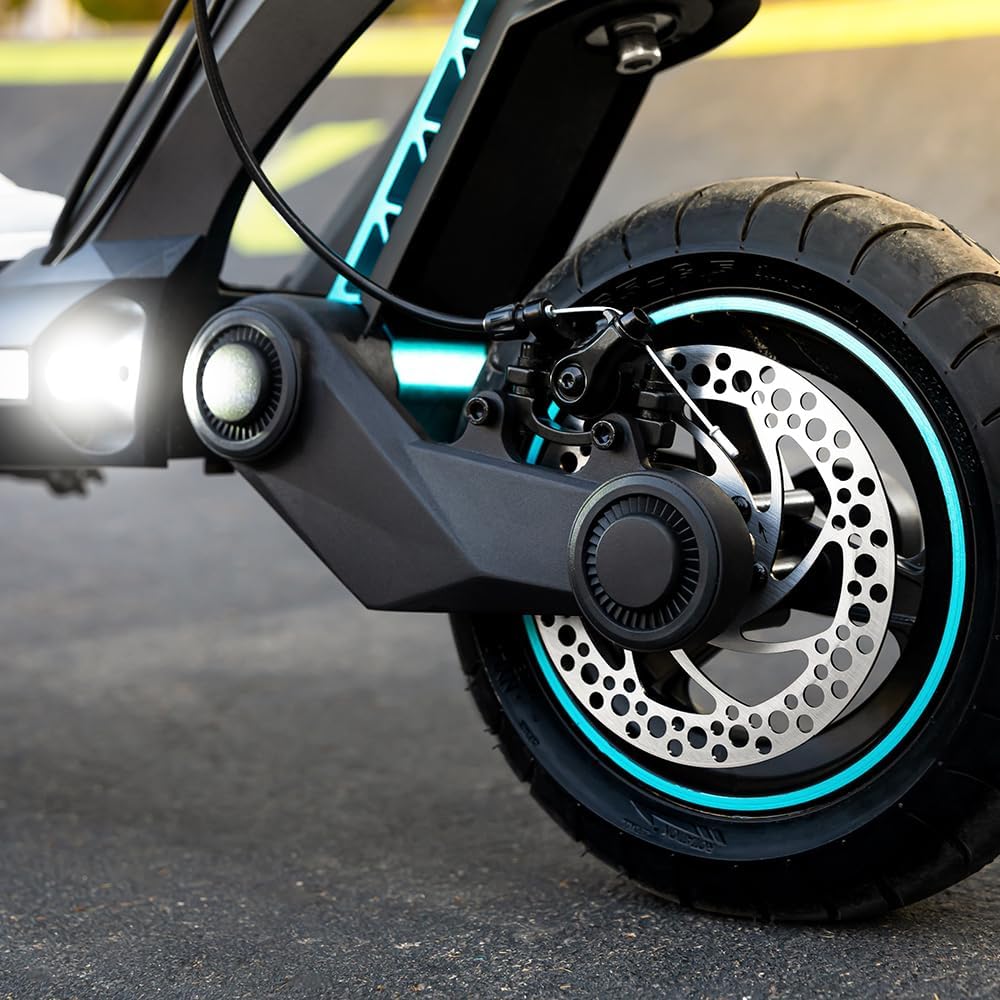

Image 7.1: Close-up of the 10.5-inch Off-Road wheels on the Cecotec Bongo Serie Z Electric Scooter.
7.3 Fetuunaiga taofi
Periodically check the disc brakes for proper alignment and responsiveness. If the brakes feel loose or make unusual noises, they may need adjustment. Consult a qualified technician if you are unsure.
7.4 Fa'atonu Fa'atonu
The SX2 suspension technology is designed for durability and comfort. Inspect the suspension components for any visible damage or excessive play. Keep the suspension clean from dirt and debris.
Ata 7.2: Tua view of the Cecotec Bongo Serie Z Electric Scooter, highlighting the suspension system.
8. Faʻafitauli
This section addresses common issues you might encounter with your Cecotec Bongo Serie Z Electric Scooter.
| Fa'afitauli | Mafuaaga e ono tupu | Fofo |
|---|---|---|
| E le ola le Scooter | Ua vaivai le maa; Ua leaga feso'ota'iga; Ua leaga le fa'amau o le paoa | Charge the battery; Check all cable connections; Contact support if issue persists. |
| Reduced range/battery life | Under-inflated tires; Riding in Sport mode; Cold weather; Overloading; Aging battery | Inflate tires to correct pressure; Use ECO or Drive mode; Avoid extreme temperatures; Do not exceed weight limit; Battery replacement may be needed. |
| Brakes are not effective | Worn brake pads; Misaligned calipers; Loose brake cables | Inspect and replace brake pads; Adjust brake calipers; Tighten brake cables; Seek professional service. |
| Pio e le masani ai i le taimi o le taotoga | Loose components; Debris in wheels/brakes; Worn bearings | Check all screws and fasteners; Clean wheels and brakes; Contact support for inspection. |
9. Fa'amatalaga
Detailed technical specifications for the Cecotec Bongo Serie Z Electric Scooter:
- Numera Fa'ata'ita'i: 07317
- Malosi maualuga: 1300 W
- Malosiaga igoa: 800 W
- Voltage: 48 V
- Malosi maa: 12600mAh
- Avanoa aupito maualuga: E oo atu i le 60 kilomita
- Tele ole uili: 10.5 inches (Off-Road)
- Faiga taofi: Triple braking (Disc brakes, e-ABS, Regenerative braking)
- Fa'amalologa: SX2 Technology (Double Arm)
- Puipuiga o le Suavai: IPX4
- Mea Fa'avaa: Aluminum Alumea
- Tapulaa o le mamafa: 120 kilokalama
- Fua o Mea: 120 x 66 x 129 cm
- Oloa mamafa: 28 kilokalama
- Mea Fa'apitoa: Digital display, Dual braking system, Regenerative braking system
10. Fa'amaonia ma Lagolago
Your Cecotec Bongo Serie Z Electric Scooter comes with a manufacturer's warranty. For specific warranty terms and conditions, please refer to the warranty card included in your package or visit the official Cecotec website. For technical support, spare parts, or any inquiries, please contact Cecotec customer service through their official channels.
Fa'amatalaga Fa'afeso'ota'i:
- Webnofoaga: Asiasi ile Faleoloa Cecotec ile Amazon
- Refer to your product packaging for additional contact details.
