Folasaga
This manual provides essential information for the proper use, installation, and maintenance of the Hitachi 372532 Special Bolt C10FSHC. Please read these instructions carefully before use to ensure safe and effective operation.
The Hitachi 372532 Special Bolt is a genuine replacement part designed for specific Hitachi (now Metabo HPT) power tools, such as the C10FSHC miter saw. It is engineered to meet the highest standards of performance and durability.
Ua Umaview

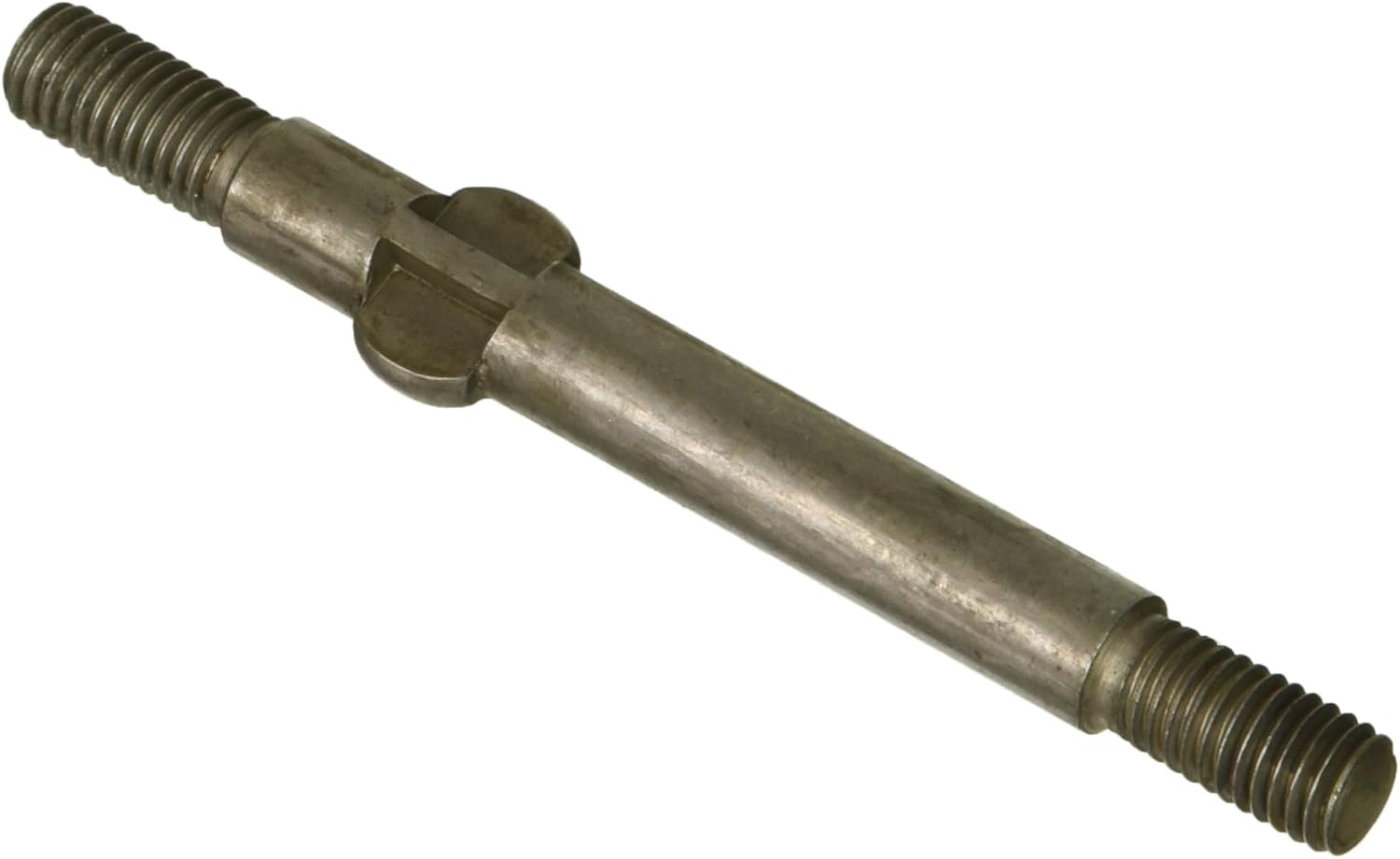

Ata 1: The Hitachi 372532 Special Bolt. This image displays the metallic bolt with threaded ends and a central, wider section featuring a cross-shaped indentation, indicating its design for specific tool integration.
The 372532 Special Bolt is a critical component for maintaining the functionality of compatible Hitachi (Metabo HPT) equipment. It is characterized by its robust metallic construction, threaded ends for secure fastening, and a distinct central design for precise fitment.
- Numera Vaega: 372532
- Ituaiga: Faamau Faʻapitoa
- Fegalegaleai: Designed for specific Hitachi/Metabo HPT power tools, including the C10FSHC.
- Mea: Fausiaina u'amea malosi.
Seti ma Fa'apipi'i
This section outlines the general procedure for installing the Hitachi 372532 Special Bolt. Always refer to the specific instruction manual of the power tool for which this bolt is intended for detailed, model-specific installation steps.
Puipuiga o le Saogalemu:
- Ia motusia le meafaigaluega eletise mai le puna o le eletise a'o le'i faia se fa'apipi'iga po'o se tausiga.
- Fai mea e puipui ai le tagata lava ia (PPE), e pei o totigilima ma mata.
- Ia mautinoa o lo'o mama ma fa'amalamalama lelei le vaega o galuega.
Laasaga fa'apipi'i:
- Identify the Replacement Area: Locate the existing bolt or the designated mounting point for the 372532 Special Bolt on your power tool.
- Remove Old Component (if applicable): Carefully remove the old or damaged bolt using appropriate tools. Keep track of any washers or nuts.
- Position the New Bolt: Insert the Hitachi 372532 Special Bolt into its designated position. Ensure proper alignment.
- Secure the Bolt: Fasten the bolt securely. If applicable, use the original washers and nuts, or new ones as specified by the tool's manual. Do not overtighten, but ensure it is firm enough to prevent loosening during operation.
- Fa'amaonia le Fa'apipi'i: After installation, gently test the movement or stability of the component secured by the bolt to ensure it is correctly installed and functioning as intended.
Fa'atonuga o Galuega
The Hitachi 372532 Special Bolt is a component part and does not have independent operating instructions. Its function is integral to the operation of the power tool it is installed in. Therefore, refer to the operating manual of your specific Hitachi (Metabo HPT) power tool for instructions on how to operate the equipment safely and effectively after the bolt has been installed.
Ensure that the bolt is always securely fastened before operating any power tool. Loose components can lead to unsafe conditions and potential damage to the tool or injury to the operator.
Tausiga
Proper maintenance of the Hitachi 372532 Special Bolt ensures the longevity and safe operation of your power tool.
- Asiasiga masani: Periodically inspect the bolt for any signs of wear, corrosion, bending, or damage. Check for any loosening.
- Fa'amamaina: Keep the bolt and surrounding area clean from dust, debris, and excessive grease. A clean, dry cloth is usually sufficient.
- Fa'amauina: If the bolt appears loose, carefully retighten it to the manufacturer's specified torque, if available, or until it is firmly secured without overtightening.
- Suiga: If the bolt shows any signs of significant wear, damage, or deformation, replace it immediately with a genuine Hitachi (Metabo HPT) 372532 Special Bolt to maintain tool integrity and safety.
Fa'afitauli
As a component part, troubleshooting directly related to the 372532 Special Bolt primarily involves issues with its physical integrity or securement.
| Fa'afitauli | Mafuaaga e ono tupu | Fofo |
|---|---|---|
| Ua matala le pulu | Insufficient tightening during installation; vibration during use. | Retighten the bolt securely. Inspect for thread damage. |
| Bolt is bent or damaged | Impact; excessive force; material fatigue. | Replace the bolt with a new Hitachi 372532 Special Bolt. Do not attempt to straighten a bent bolt. |
| Difficulty installing bolt | Incorrect alignment; damaged threads on bolt or tool; incompatible part. | Ensure correct alignment. Check threads for damage. Verify the bolt is the correct part number for your tool. |
If issues persist or if you are unsure about any repair, consult a qualified service technician or contact Hitachi/Metabo HPT customer support.
Fa'amatalaga
| Uiga | Fa'amatalaga |
|---|---|
| Numera Vaega | 372532 |
| Fa'ailoga | Hitachi (now Metabo HPT) |
| Ituaiga | Faamau Faʻapitoa |
| Fegalegaleaiga | C10FSHC and other compatible Hitachi/Metabo HPT tools |
| Tufuga | Koki Holdings America, Ltd |
| Vaaiga (Oloa) | 2.54 x 2.54 x 2.54 cm (1 x 1 x 1 inisi) |
| Mea mamafa | 80 g |
| Fua Faiga | metric |
| Ituaiga Fa'amau | Chicago Bolt |
Fa'amaonia ma Lagolago
For specific warranty information regarding the Hitachi 372532 Special Bolt, please refer to the warranty policy provided with your original Hitachi (Metabo HPT) power tool or contact Koki Holdings America, Ltd. directly.
Lagolago tagata fa'atau:
- For technical assistance or inquiries about replacement parts, please contact Metabo HPT (formerly Hitachi Power Tools) customer service.
- Asiasi i le ofisa aloaia Metabo HPT webnofoaga for up-to-date contact information and service center locations.
