Huacaoe Tuya 4CH Smart Temperature and Humidity Sensor Controller User Manual

1. Folasaga

This manual provides detailed instructions for the installation, operation, and maintenance of your Huacaoe Tuya 4-Channel Smart Temperature and Humidity Sensor Controller. This device allows for remote monitoring and control of temperature and humidity, integrating with the Tuya Smart Life app and voice assistants like Amazon Alexa and Google Home. It features four independent channels for controlling various electrical appliances based on environmental conditions.

2. Fa'amatalaga Saogalemu

• Ia mautinoa o uaea uma o loʻo faʻatinoina e se eletise agavaa ma ia tausisia tulafono eletise a le lotoifale.
• Aveese le paoa a'o le'i fa'apipi'i po'o le tausiga ina ia puipuia ai le te'i eletise.
• Do not exceed the maximum load current of 10A per channel or 16A total for all four channels. For high-power appliances, use an external contactor.
• Operate the device within the specified working temperature (-20℃ to 80℃) and humidity (5% to 90% RH) ranges.
• This device is designed for indoor use. Avoid exposure to water or extreme environmental conditions.

3. Oloa Ua Ovaview

3.1 Vaega Autu

• Remote ON/OFF Control: Manage connected devices from anywhere via the Tuya Smart Life app.
• Mata'ituina le vevela ma le susū: Real-time data display and historical record keeping.
• Smart Automation: Automatically turn devices on/off based on preset temperature and humidity ranges.
• Multi-channel Control: Four independent channels to control multiple devices.
• Pulea leo: Faʻatasi ma Amazon Alexa ma Google Home mo le faʻaogaina e leai ni lima.
• Fa'atulagaina ma Taimi: Supports single, repeat, loop, and countdown timers.
• Offline Bluetooth Control: Control devices via Bluetooth through the Tuya app when Wi-Fi is unavailable (within range).
• Galuega RF: Supports fixed code 433MHz RF for additional control options.

3.2 Vaega

The package includes the smart controller unit and a 1-meter AM2302 high-sensitive temperature and humidity sensor cable.

Ata 3.2.1: Huacaoe 4CH Smart Temperature and Humidity Sensor Controller with its connected sensor probe. The main unit features terminal blocks for wiring, control buttons (K1-K4, Reset), and indicator lights. The sensor probe is a black, perforated unit designed to measure environmental conditions.

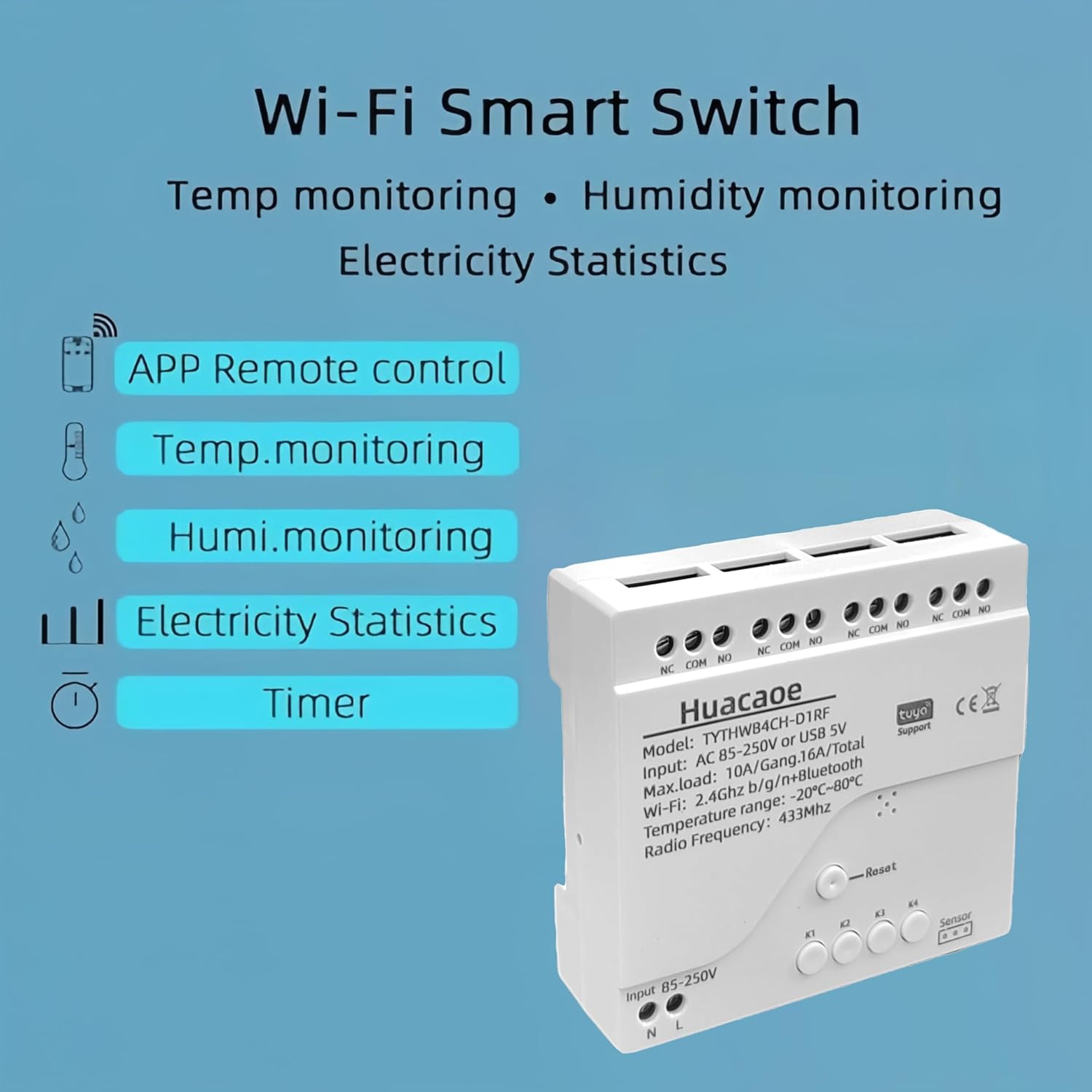

Ata 3.2.2: Visual summary of the Huacaoe Wi-Fi Smart Switch's capabilities, including APP Remote control, Temperature monitoring, Humidity monitoring, Electricity Statistics, and Timer functions, displayed alongside the main controller unit.

4. Fa'amatalaga

5. Seti

5.1 Fa'atonuga uaea

Before wiring, ensure the power supply is disconnected. The controller supports both USB 5V and AC 85-250V input. Connect the temperature and humidity sensor to the designated sensor socket. For controlling appliances, connect the input power to the L (Live) and N (Neutral) terminals. The output for each channel uses NO (Normally Open) and COM (Common) terminals to switch the connected appliance.

Ata 5.1.1: Detailed wiring diagram illustrating connections for the sensor socket, USB 5V input, AC 85-250V input, manual switches, reset button, and output terminals (NO, COM) for controlling an appliance (depicted as a light bulb).

1. Malosiaga Ulufale: Connect your power source (AC 85-250V or USB 5V) to the corresponding input terminals. For AC, connect Live (L) and Neutral (N).
2. So'oga fa'alogo: Plug the AM2302 temperature and humidity sensor cable into the dedicated sensor socket.
3. Appliance Output: For each appliance you wish to control, connect its power input to the NO (Normally Open) and COM (Common) terminals of the desired channel (e.g., Channel 1 uses NO1 and COM1). The input power for the appliance should be connected to the COM terminal, and the switched output to the NO terminal.
4. Manual Switches: The device includes manual buttons (K1-K4) for local control of each channel.

5.2 Fa'apipi'i ma Fa'atasi

The Huacaoe Smart Controller operates with the Tuya Smart Life application, available on iOS and Android devices.

1. Download Polokalama Komepiuta: Saili mo "Tuya Smart" or "Smart Life" in your device's app store and install it.
2. Resitala/Saini: Open the app and register a new account or log in with an existing one.
3. Malosi i luga o le masini: Connect the Huacaoe controller to power. The network indicator light should start blinking.
4. Fa'aopoopo le masini: In the Tuya Smart Life app, tap the "+" icon in the top right corner to add a device. The app may automatically discover the new device. If not, manually select "Electrical" > "Switch (Wi-Fi)" or "Sensor" > "Temperature and Humidity Sensor (Wi-Fi)".
5. So'oga Wi-Fi: Ensure your smartphone is connected to a 2.4GHz Wi-Fi network. The device only supports 2.4GHz Wi-Fi. Enter your Wi-Fi password when prompted.
6. Fa'atasi: Follow the on-screen instructions to complete the pairing process. If the device does not pair, press and hold the "Reset" button on the controller for 5-7 seconds until the indicator light blinks rapidly, then try pairing again.
7. Toe fa'aigoa le masini: Once paired, you can rename the device and individual channels within the app for easier identification.

Fa'amatalaga Taua: Place the controller close to your Wi-Fi router during the pairing process for optimal signal strength. 5GHz Wi-Fi networks are not supported.

6. Galuega

6.1 Remote Control via Tuya Smart Life App

After successful pairing, you can control and monitor your device from anywhere using the Tuya Smart Life app.

Ata 6.1.1: Screenshot of the Tuya Smart Life app interface for the 4-channel controller. It displays current temperature and humidity, a "Switch All" toggle, and individual controls (Switch, Timing, Countdown) for each of the four channels. Options for renaming, notifications, sharing, and device removal are also visible.

• Mata'ituina taimi moni: View current temperature and humidity readings directly on the app's main device screen.
• Tusi Lesona Pulea: Toggle individual channels ON/OFF using the "Switch" buttons in the app. A "Switch All" option is also available.
• Timing and Countdown: Set schedules or countdown timers for each channel to automate appliance operation. These timers function even if the network is temporarily unavailable.
• Fa'atonuga masini: Access settings to rename the device, set offline notifications, share control with other users, or remove the device.

Ata 6.1.2: A user demonstrating manual control of the device through the Tuya Smart Life app on a smartphone, highlighting the convenience of remote operation.

6.2 Otometi Atamai ma Fausia Vaaiga

Utilize the app's smart scene feature to create automated rules based on temperature, humidity, or other conditions.

• Mea e Fa'aosofia ai le Vevela/Susū: Set conditions, e.g., "If temperature rises above 25℃, turn on Channel 1 (fan)." or "If humidity drops below 40%, turn on Channel 2 (humidifier)."
• Daily Power Consumption: Monitor daily power consumption in real-time through the Tuya Smart Life app.

Ata 6.2.1: Examples of appliances and environments where the smart controller can be used, including warmers, fish tanks, dehumidifiers, lamps, incubators, air conditioning fans, feeding systems, electric fans, farms, storage facilities, greenhouses, and automatic watering systems.

Ata 6.2.2: Further illustrations of application scenarios, such as irrigation systems, greenhouses, home heating, storage, breeding facilities, and fan control, all benefiting from precise temperature and humidity management.

6.3 Tuufaatasiga Pulea leo

The controller is compatible with Amazon Alexa and Google Home. Link your Tuya Smart Life account to your voice assistant app to enable voice commands.

• Amazon Alexa: Enable the "Smart Life" skill in the Alexa app. Discover devices.
• Google Home: Link the "Smart Life" service in the Google Home app.
• Poloaiga leo: Use commands like "Alexa, turn on [Device Name] Channel 1" or "Hey Google, what is the temperature in [Device Name]?"
• Siri Voice Control: Create smart scenes in the Smart Life app and add them as Siri Shortcuts for voice control.

6.4 Data Monitoring and History

The Tuya Smart Life app provides detailed historical data for temperature and humidity.

Ata 6.4.1: Screenshot of the Tuya Smart Life app's statistics section, displaying graphs of current temperature and humidity data over time (day, month, year views available). This allows users to review environmental data trends.

• Fa'amatalaga Fa'asolopito: Review temperature and humidity data by hour, day, month, or year.
• Suiga Iunite: Switch between Celsius (℃) and Fahrenheit (℉) units within the app settings.
• Fa'avasegaina: The app allows for temperature and humidity calibration, as well as setting sensitivity levels.

7. Tausiga

• Tausia le masini mama ma saoloto mai pefu. Fa'aaogā se ie mālū ma mago mo le fa'amamāina.
• Ensure the temperature and humidity sensor is not obstructed and is placed in an area representative of the environment you wish to monitor.
• Regularly check wiring connections for security and integrity.
• Keep the Tuya Smart Life app updated to the latest version for optimal performance and security.

8. Faʻafitauli

9. Fa'amaonia ma Lagolago

For warranty information and technical support, please refer to the documentation included with your purchase or contact Huacaoe customer service directly. Details are typically available on the manufacturer's official webnofoaga po'o lau fa'atau oloa.
