1. Fa'amatalaga Saogalemu
This section outlines important safety precautions to ensure safe operation and prevent injury or damage. Always read and understand all instructions before using the appliance.
- Saogalemu Faaeletise: Requires 220-240 Volts wiring with a 40 amps breaker. Hard wiring is included. Ensure proper grounding and installation by a qualified electrician.
- Fa'ailoga Laupapa vevela: An "H" will appear in the surface cooking area display when elements are hot to the touch.
- Pan Size Sensor: Heats the element to the size of your cookware and turns off when no pan is present for safety and efficiency.
- Child Control Lock: Feature prevents unintended activation for added safety.
- Mea Kuka Fegalegaleai: Only use induction-compatible cookware (most stainless steel and cast iron). If a magnet sticks to the bottom of a pot or pan, it is induction friendly.
- Mea i luga: The vitro ceramic glass surface withstands intense heat without cracking or chipping, and spills do not burn onto the surface, making it easy to clean.
2. Oloa Ua Ovaview
The Empava 24-inch Electric Induction Cooktop (Model EMPV-IDC24) offers efficient and precise cooking with its smooth vitro ceramic glass surface and advanced induction technology. It features four booster burners and digital controls.
Figure 2.1: Empava 24-inch Electric Induction Cooktop - Top View. This image displays the sleek black glass surface with four induction cooking zones and touch controls at the bottom.
Vaega Autu:
- Four Booster Burners: Two 8-inch heating elements up to 2700-Watt and two 6-inch heating elements up to 2000-Watt in Power Boost Mode (up to 5 minutes).
- Sensitive Digital Control: Touch controls for precise temperature adjustments.
- 9 Heat Level Settings: Allows for a range from melt to rapid boil.
- 99-Minute Taimi: Can be set to automatically turn off the selected zone.
- Fa'aaliga LED Mumu: Complements the sleek black glass surface for a modern look.
3. Fa'apipi'i
Proper installation is crucial for the safe and efficient operation of your Empava induction cooktop. It is recommended that installation be performed by a qualified professional.
Fua ma le Tipi:
- Fua o Mea: 23.25 in L x 20.5 in D x 2.12 in H
- Vaega tipi: 22.5 in L x 19.5 in D
Figure 3.1: Installation Guide and Safety Distance. This diagram illustrates the required dimensions for the countertop cutout and the necessary safety clearances around the cooktop for proper ventilation.
Manaoga eletise:
The cooktop requires 220-240 Volts wiring with a 40 amps breaker. Hard wiring is included. Ensure the electrical supply meets these requirements before installation.
Figure 3.2: Electrical Connection. This image shows the robust electrical conduit provided for hardwiring the cooktop, emphasizing the importance of secure and compliant electrical connections.
4. Fa'atonuga o Galuega
Your Empava induction cooktop is designed for intuitive use. Follow these steps to operate your appliance.
Galuega Fa'avae:
- Malosiaga: Press the main power button (usually indicated by a circle with a vertical line).
- Filifili Sone kuka: Choose the desired cooking zone by pressing its corresponding selection button.
- Fetuuna'i tulaga vevela: Use the '+' and '-' buttons or slide controls to set the desired heat level from 1 to 9.
- Power Boost Mode: For rapid heating, select a cooking zone and activate the 'B' (Boost) function. This provides maximum power for up to 5 minutes.
- Seti Timer: Use the timer controls to set a cooking duration up to 99 minutes. The cooktop will automatically turn off the selected zone when the timer expires.
- Loka Tamaiti: Activate the child lock feature to prevent accidental operation. Refer to the control panel for the specific lock icon.
- Tapē le eletise: Press the main power button again to turn off the cooktop. Individual zones can also be turned off by reducing their heat level to '0'.

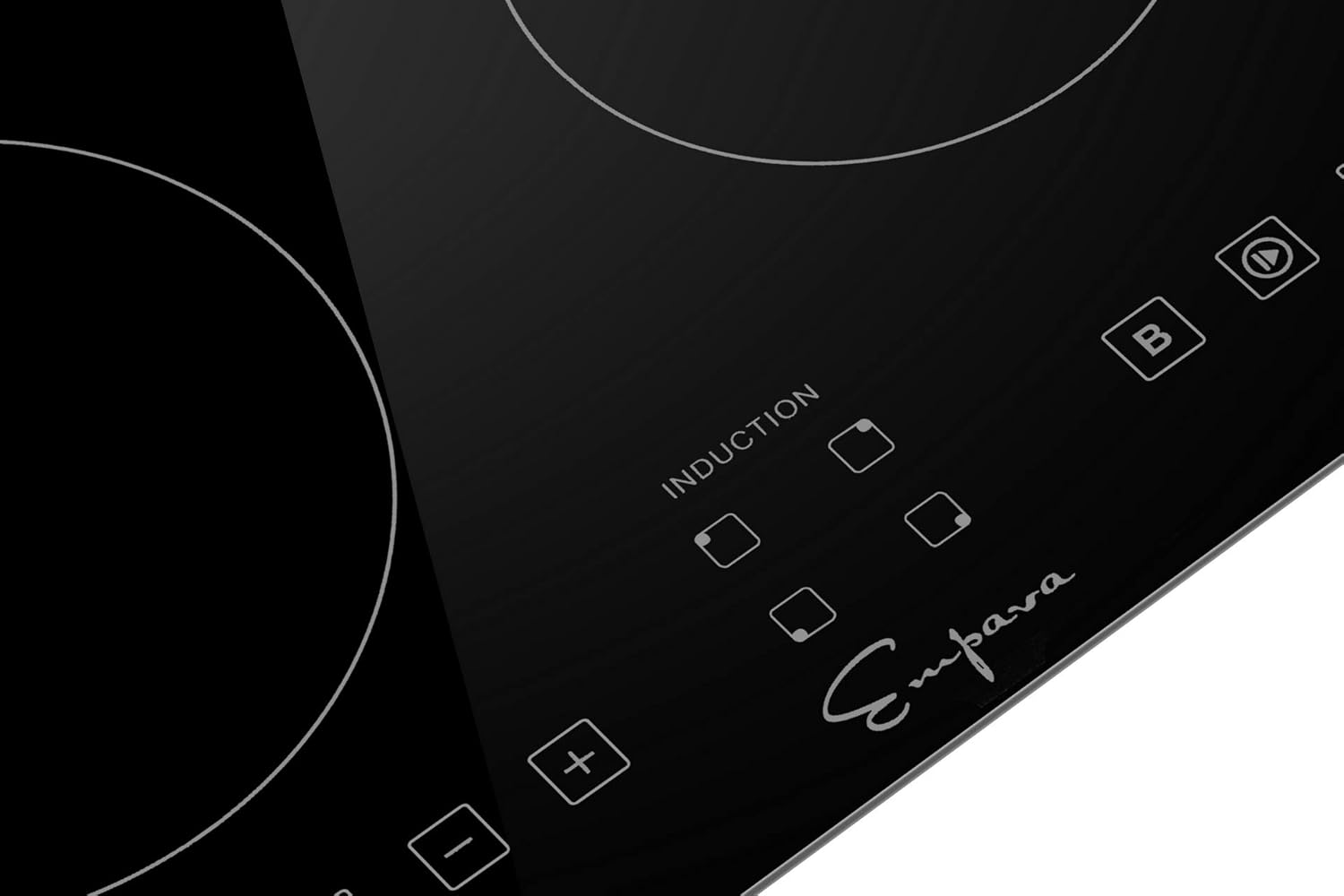

Figure 4.1: Digital Touch Controls. This image highlights the intuitive touch controls for power, heat level adjustment, boost function, and timer settings.
5. Fetaui ma Meafaigaluega Kuka
Induction cooktops require specific types of cookware. Ensure your pots and pans are induction-compatible for optimal performance.
Cookware talafeagai:
- Most stainless steel cookware.
- Cast iron cookware.
- Any cookware with a magnetic base. A simple test is to see if a magnet sticks to the bottom of the pot or pan.
Incompatible Cookware:
- Aluminum, copper, glass, ceramic, or non-magnetic stainless steel cookware.
6. Fa'amamā ma Tausiga
The smooth vitro ceramic glass surface of your Empava cooktop is designed for easy cleaning. Regular maintenance will keep your appliance looking new.
Fa'amamaina i aso ta'itasi:
- Fa'amama loa le masaa ile fa'asalalaugaamp ie.
- For stubborn stains, use a ceramic cooktop cleaner and a non-abrasive pad.
- Avoid using abrasive cleaners, scouring pads, or harsh chemicals that can scratch or damage the surface.
Puipuia Fa'aleagaina:
- Do not slide heavy or rough cookware across the surface to prevent scratches.
- Avoid dropping hard objects on the glass surface.
- Ensure the cooktop is cool before cleaning to prevent burns from residual heat.
7. Faʻafitauli
If you experience issues with your cooktop, refer to the common problems and solutions below before contacting customer support.
| Fa'afitauli | Mafuaaga e ono tupu | Fofo |
|---|---|---|
| E le kilia le kuka. | Leai se eletise; Loka tamaiti. | Check circuit breaker; Deactivate child lock by pressing and holding the lock button. |
| Sone kuka e le fa'amafanafanaina. | Incompatible cookware; Pan not centered or too small. | Use induction-compatible cookware; Center pan on zone; Use appropriate pan size. |
| Kiliki pisa i le taimi o le taotoga. | Normal operation of induction technology. | This is normal and indicates the induction coils are working. |
| "Lo" or other error code displayed. | Indicates a lock mode or other operational issue. | Refer to the specific error code in the full user manual (PDF) or contact customer support. |
8. Fa'amatalaga
- Fa'ailoga: Empava
- Fa'ata'ita'iga: EMPV-IDC24
- Ituaiga Fa'apipi'i: Fale-I totonu
- Ituaiga Mu: Fa'atosina
- Elemene fa'avevela: 4
- Voltage: 220-240 Volt
- Uatage: 2100 watts (total, with individual burner wattages up to 2700W in boost mode)
- Ituaiga Mea: Glass (Vitro Ceramic)
- Lanu: Lanu uliuli
- Fua o Mea: 20.47"D x 23.62"W x 2.28"L
- Mea mamafa: 18 pauna
- Fa'apitoa Fa'apitoa: Child Control Lock
9. Fa'amaonia ma Lagolago
Empava Appliances offers a 2-Year US-Based Manufacturer Warranty for this product. For technical assistance, warranty claims, or to purchase replacement parts, please contact Empava customer support.
Refer to the full User Manual (PDF) for complete warranty details and contact information.
Vaega e aofia ai: Induction Cooktop, US Standard Power Cord, Installation Kit, Manual.
